Standard Features
- Face: 12-gauge Steel, 1" Minimum Face Flange
- Hole Pattern: 5/16" Round Holes on 7/16" Staggered Centers
- Finish: White, Two-part Polyurethane Inside and Out
Optional Upgrades

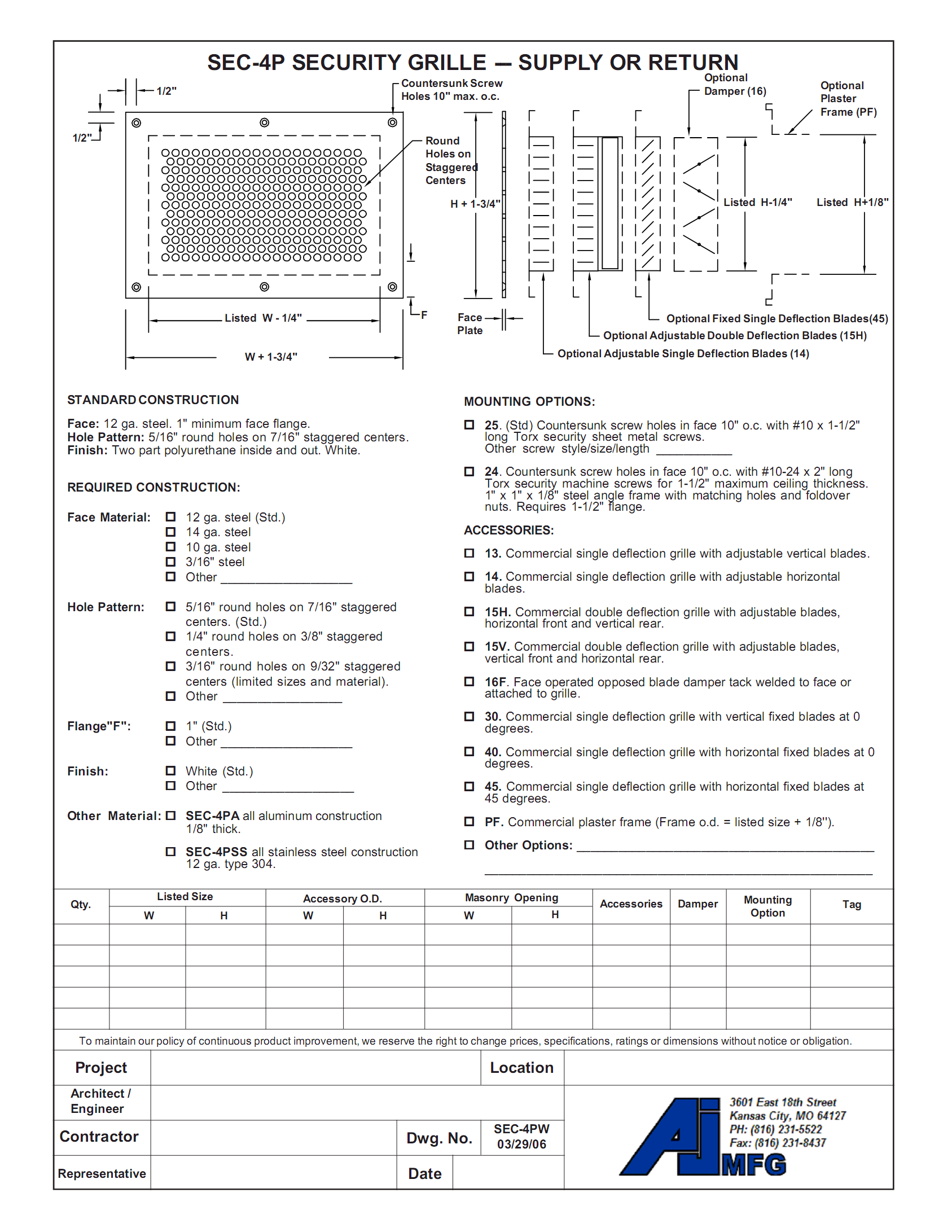

- For full list of options and upgrades, please download submittal.
