removable filter grilles

ssfg-550-removeable-filter-grille

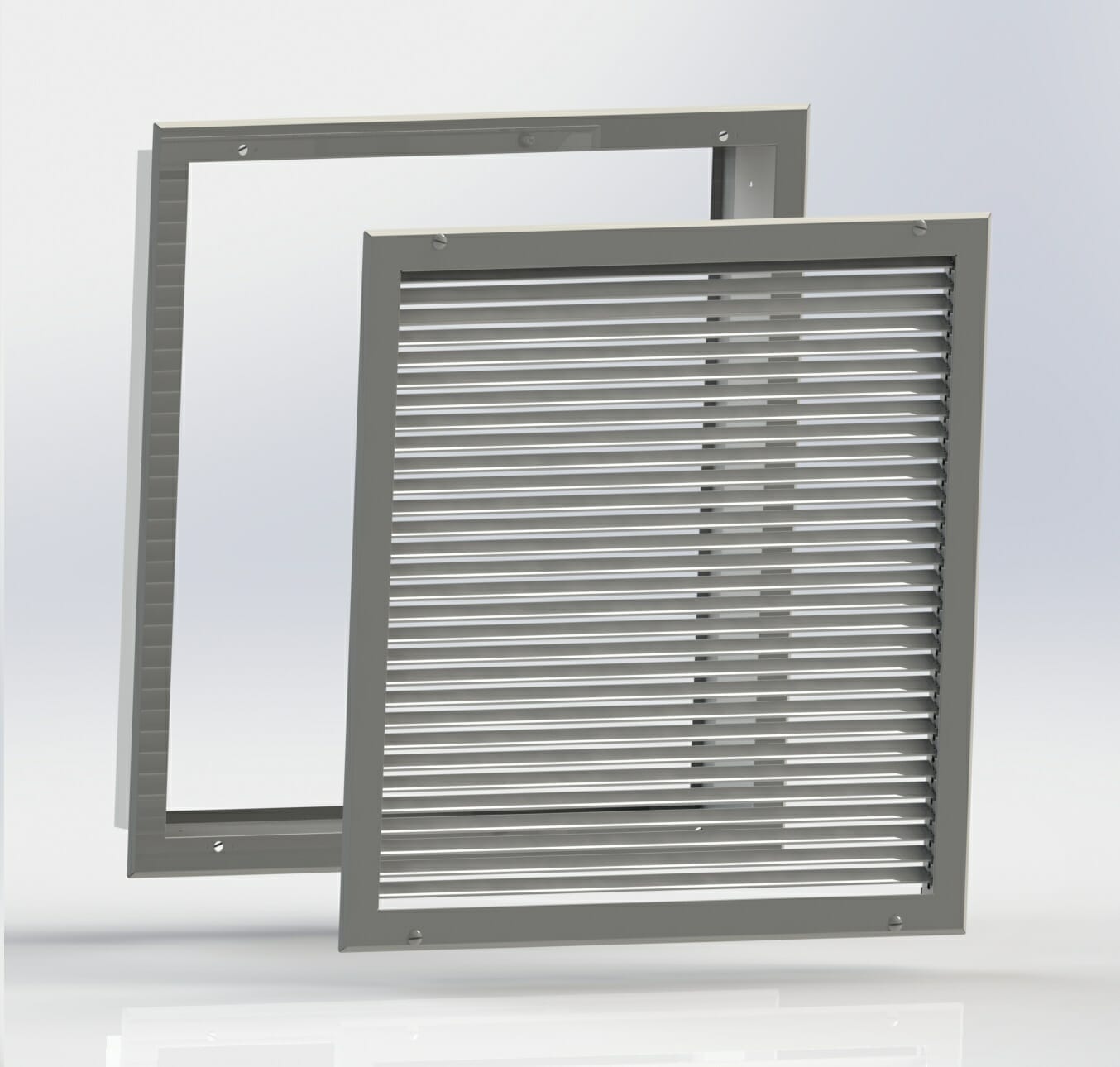

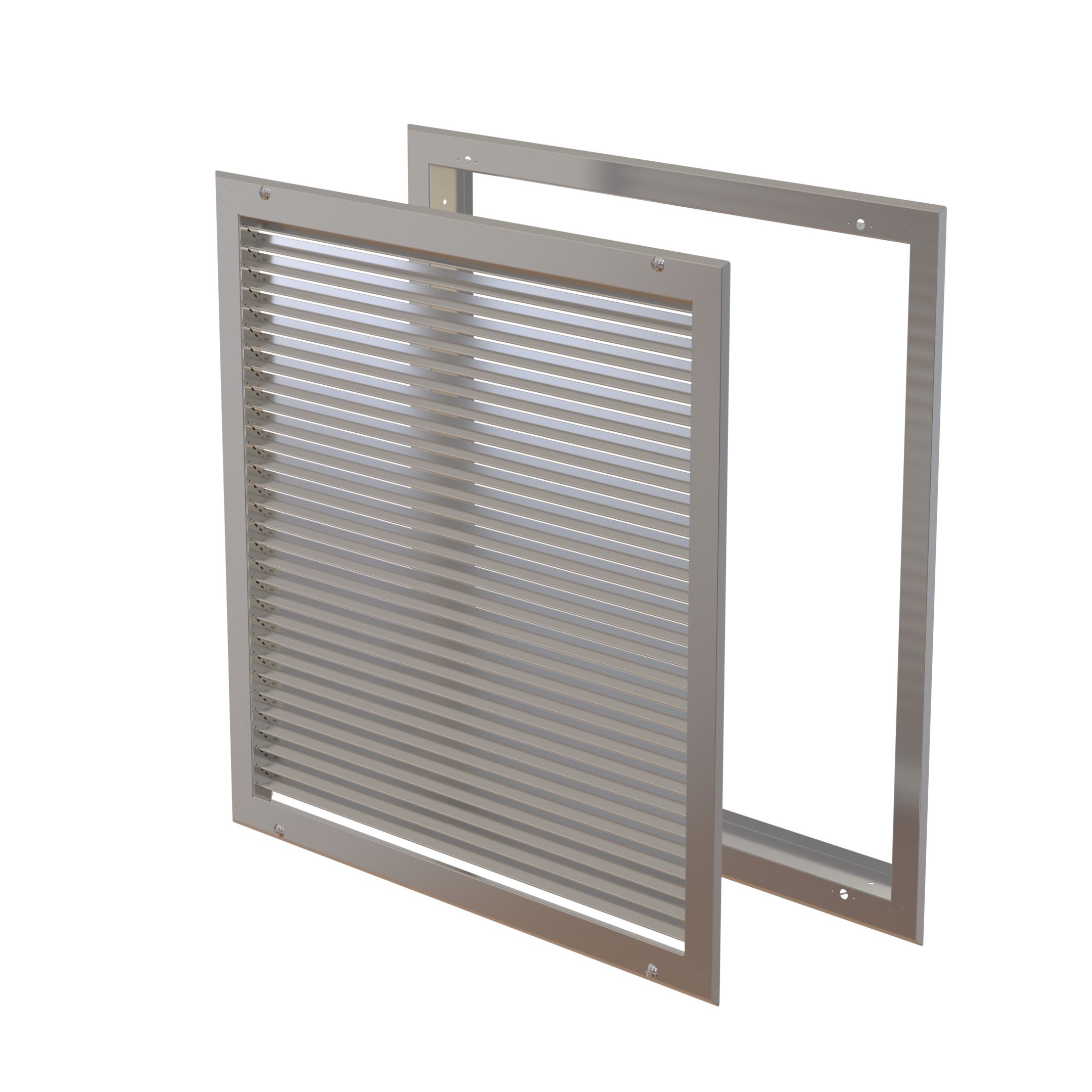

SSFG 550 — Removeable Filter Grille

The SSFG 550 Model Removeable Filter Return Grilles and Registers have fixed horizontal blades (parallel to width/first specified dimension) spaced on ¾″ (19) centers with 45° straight face deflection. The grille core is secured to the face of the outer frame with stainless steel ¼-turn fasteners, allowing quick removal for cleaning or changing the filters. The streamlined blades and open spacing maintain a minimum effective free area of 50%, which minimizes intake velocity, reduces inlet pressure and provides quiet operation. Deflected bar grilles installed in a low or high side wall location are vision-proof with the grille blade deflection facing away from the line of sight. Stainless steel grilles and registers are well suited for applications involving corrosive environments, high humidity or frequent cleaning with strong chemicals. Typical projects include hospitals, clean rooms, laboratories, industrial and manufacturing facilities.
ssfg-550-hd-heavy-duty-removeable-filter-grille

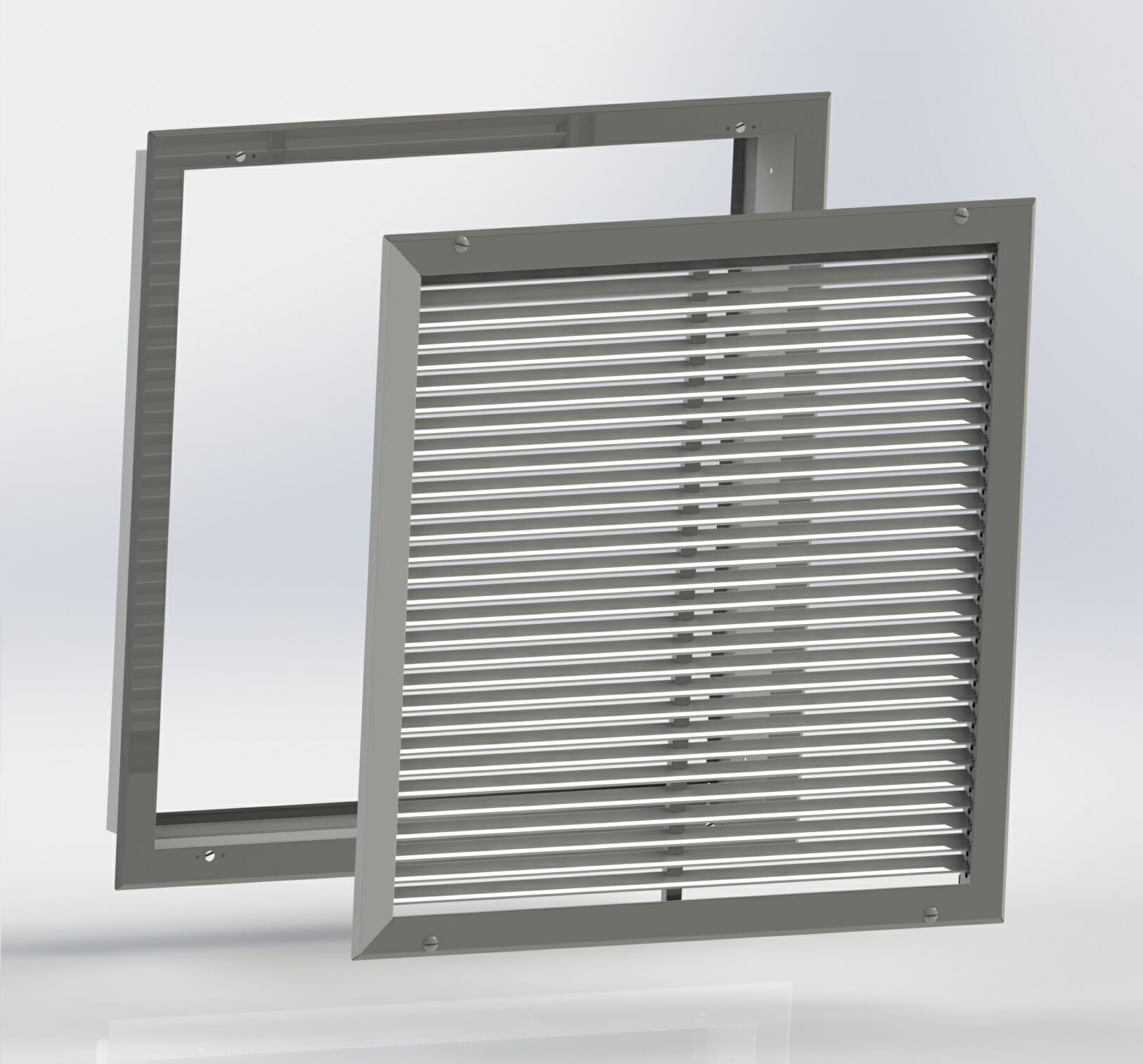

SSFG 550 HD — Heavy Duty Removeable Filter Grille

The SSFG 550 HD Model Removeable Filter Return Grilles and Registers have fixed horizontal blades (parallel to width/first specified dimension) spaced on ¾" (19) centers with 45° straight face deflection. The grille core is secured to the face of the outer frame with stainless steel ¼-turn fasteners, allowing quick removal for cleaning or changing the filters. The streamlined blades and open spacing maintain a minimum effective free area of 50%, which minimizes intake velocity, reduces inlet pressure and provides quiet operation. Deflected bar grilles installed in a low or high side wall location are vision-proof with the grille blade deflection facing away from the line of sight. Stainless steel grilles and registers are well suited for applications involving corrosive environments, high humidity or frequent cleaning with strong chemicals. Typical projects include hospitals, clean rooms, laboratories, industrial and manufacturing facilities.
ssfg-150-removeable-filter-grille

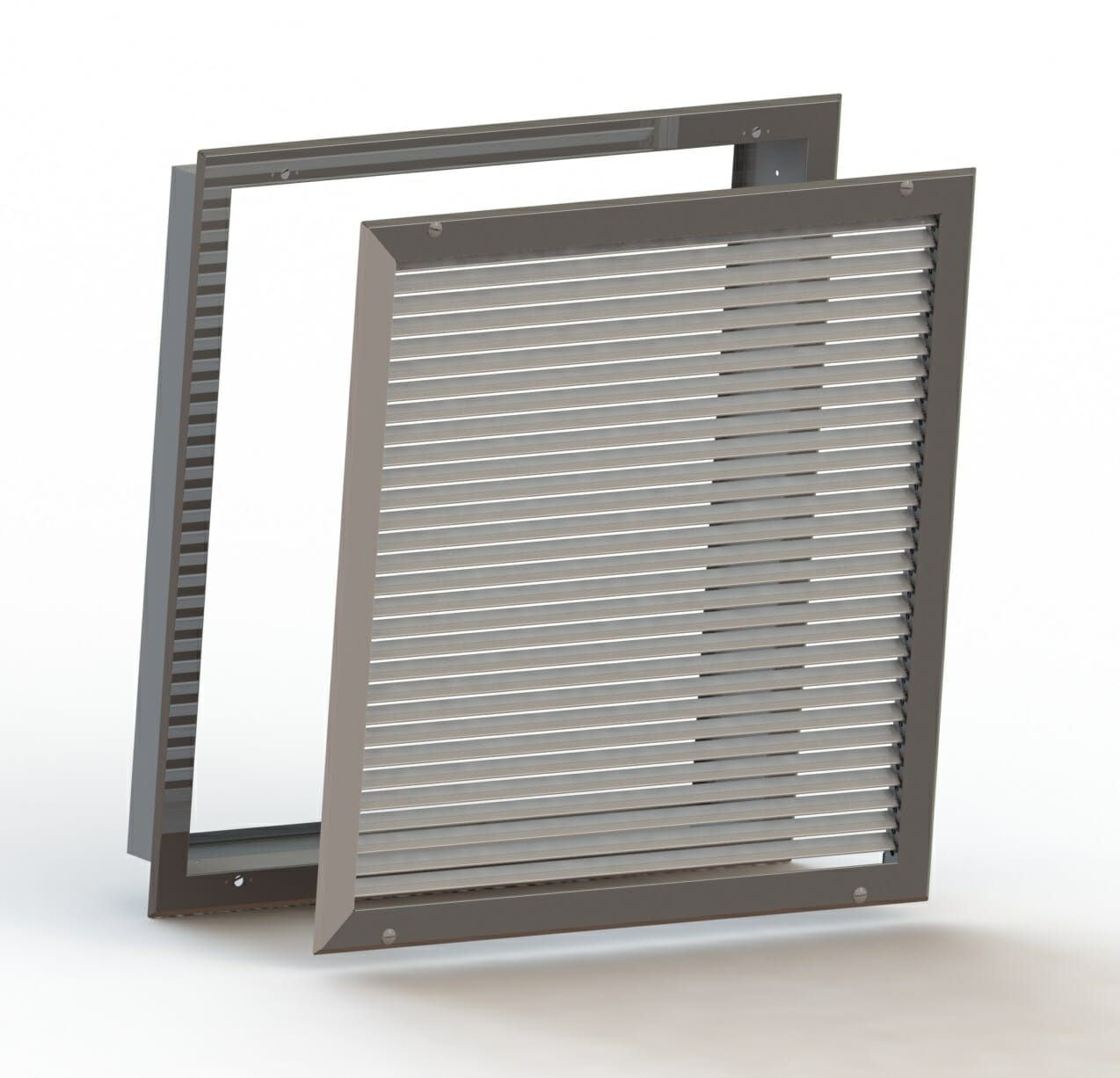

SSFG 150 — Removeable Filter Grille

The SSFG 150 Model Removable Filter Return Grilles and Registers have adjustable horizontal blades (parallel to width/first specified dimension) spaced on ¾" (19) centers with adjustable deflection. The grille core is secured to the face of the outer frame with stainless steel ¼-turn fasteners, allowing quick removal for cleaning or changing the filters. The streamlined blades and open spacing maintain a minimum effective free area of 50%, which minimizes intake velocity, reduces inlet pressure and provides quiet operation. Deflected bar grilles installed in a low or high side wall location are vision-proof with the grille blade deflection facing away from the line of sight. Stainless steel grilles and registers are well suited for applications involving corrosive environments, high humidity or frequent cleaning with strong chemicals. Typical projects include hospitals, clean rooms, laboratories, industrial and manufacturing facilities.
ssfg-perf-removable-perforated-filter-grille

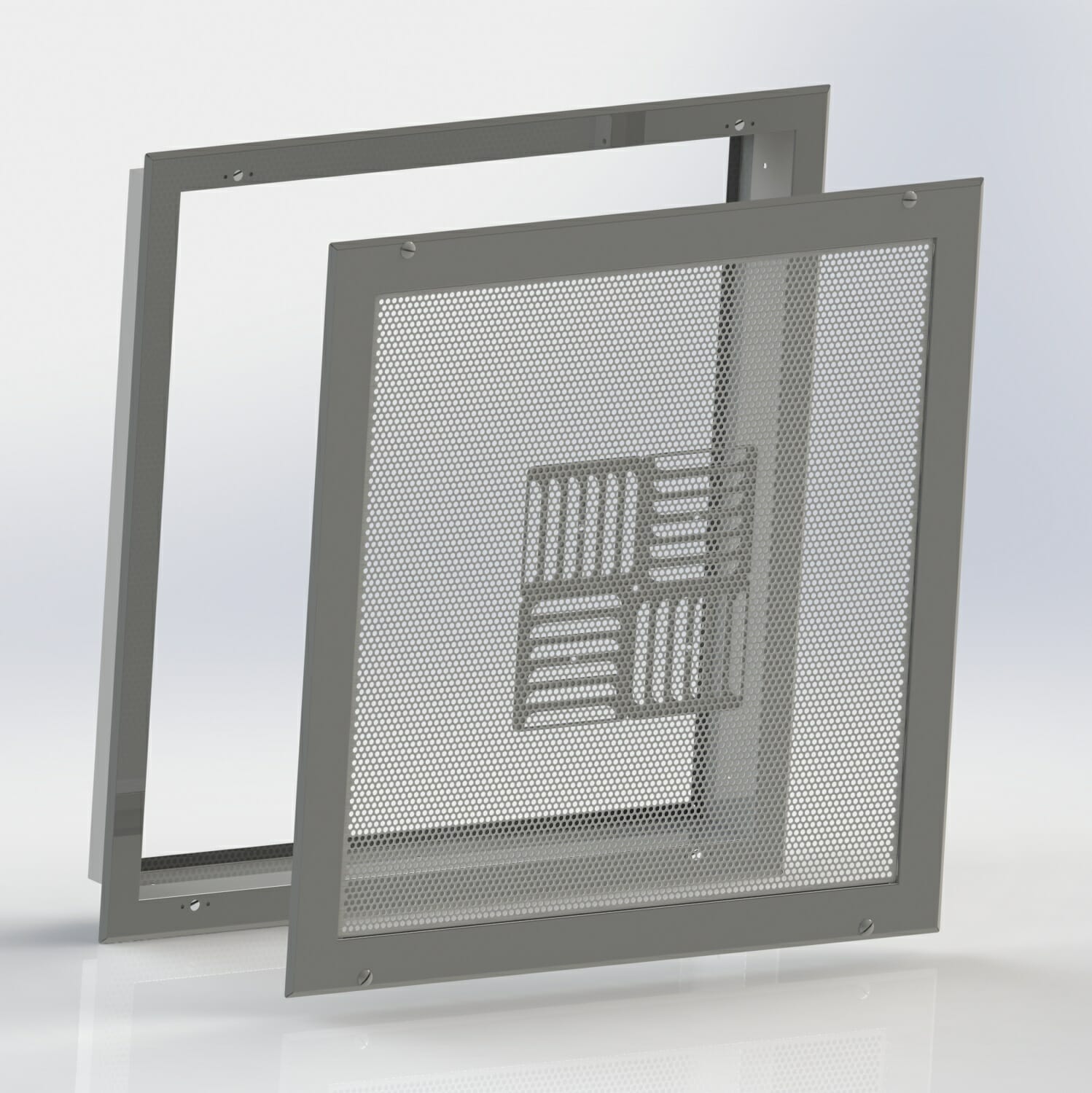

SSFG PERF — Removable Perforated Filter Grille

The SSFG PERF Series Removable Perforated Filter Grille.
ssfg-ec-egg-crate-removable-filter-grille

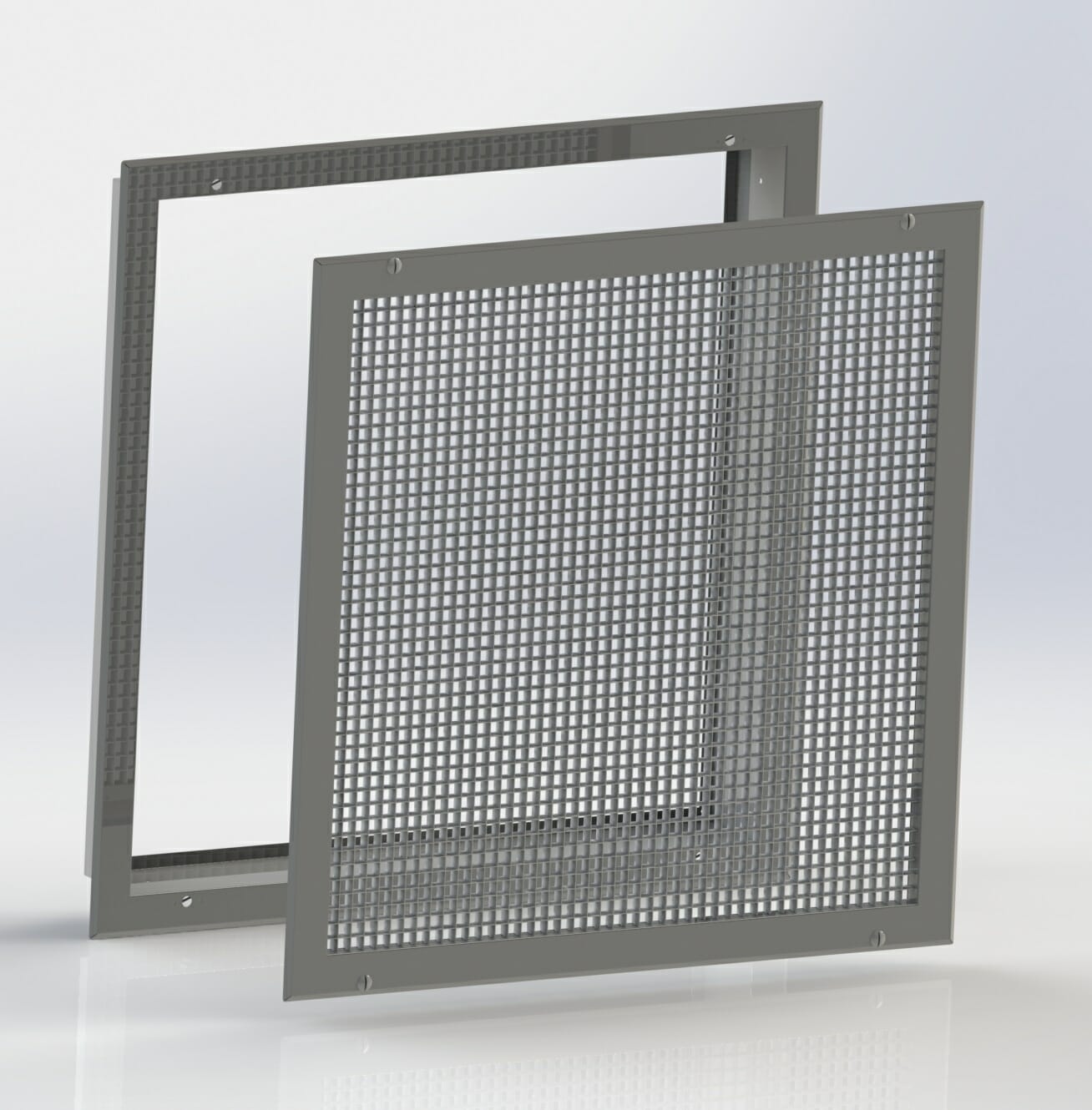

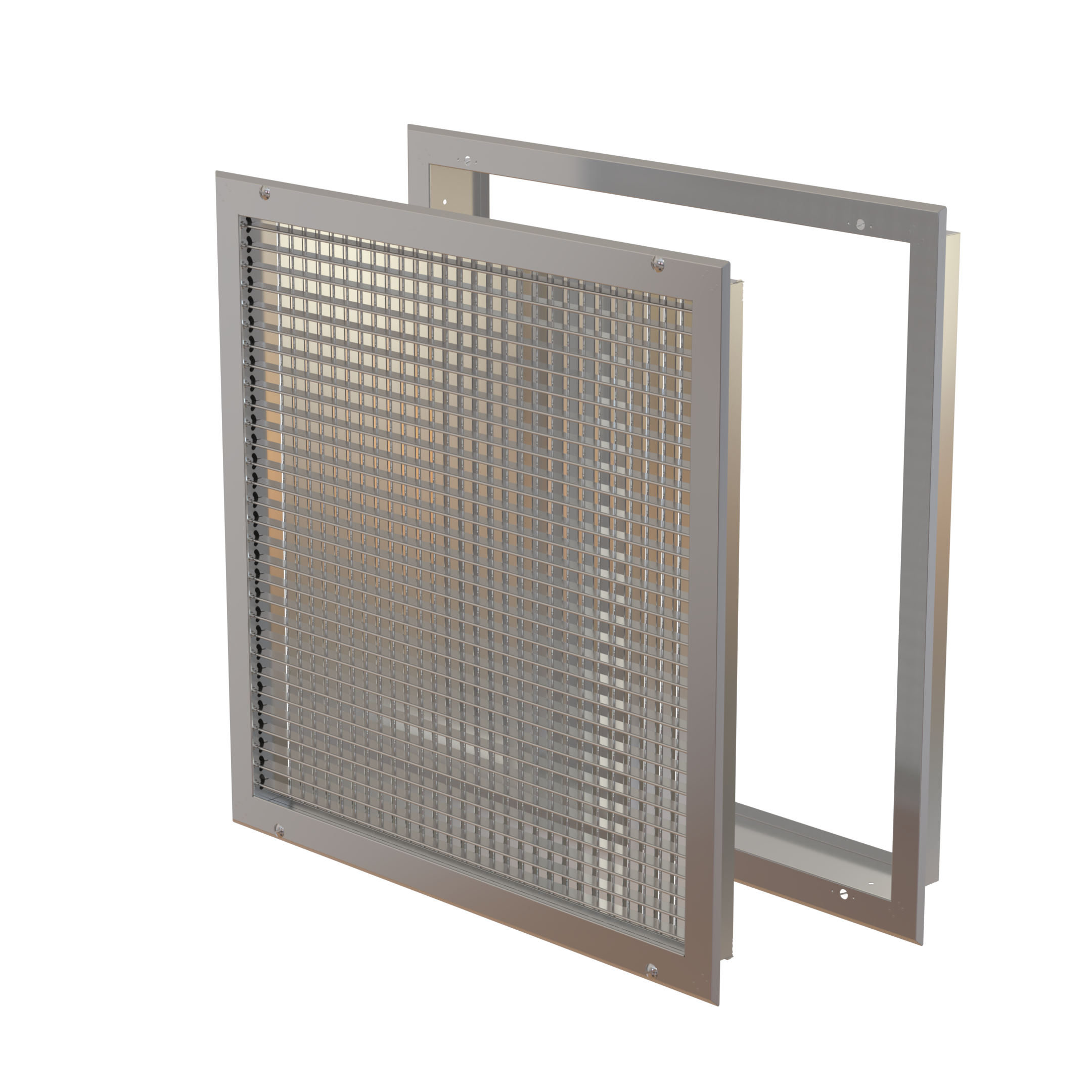

SSFG-EC Egg Crate Removable Filter Grille

The SSFG-EC Series ½" x ½" x 12" Egg Crate Filter Grille is hinged in our 1000 Plaster Frame and secured with low profile ¼-turn fasteners. The removable filter grille allows easy access to filters or mechanical equipment. Specify with filter clips for filter applications; 1? filter depth is standard, with optional filter depths up to 2".

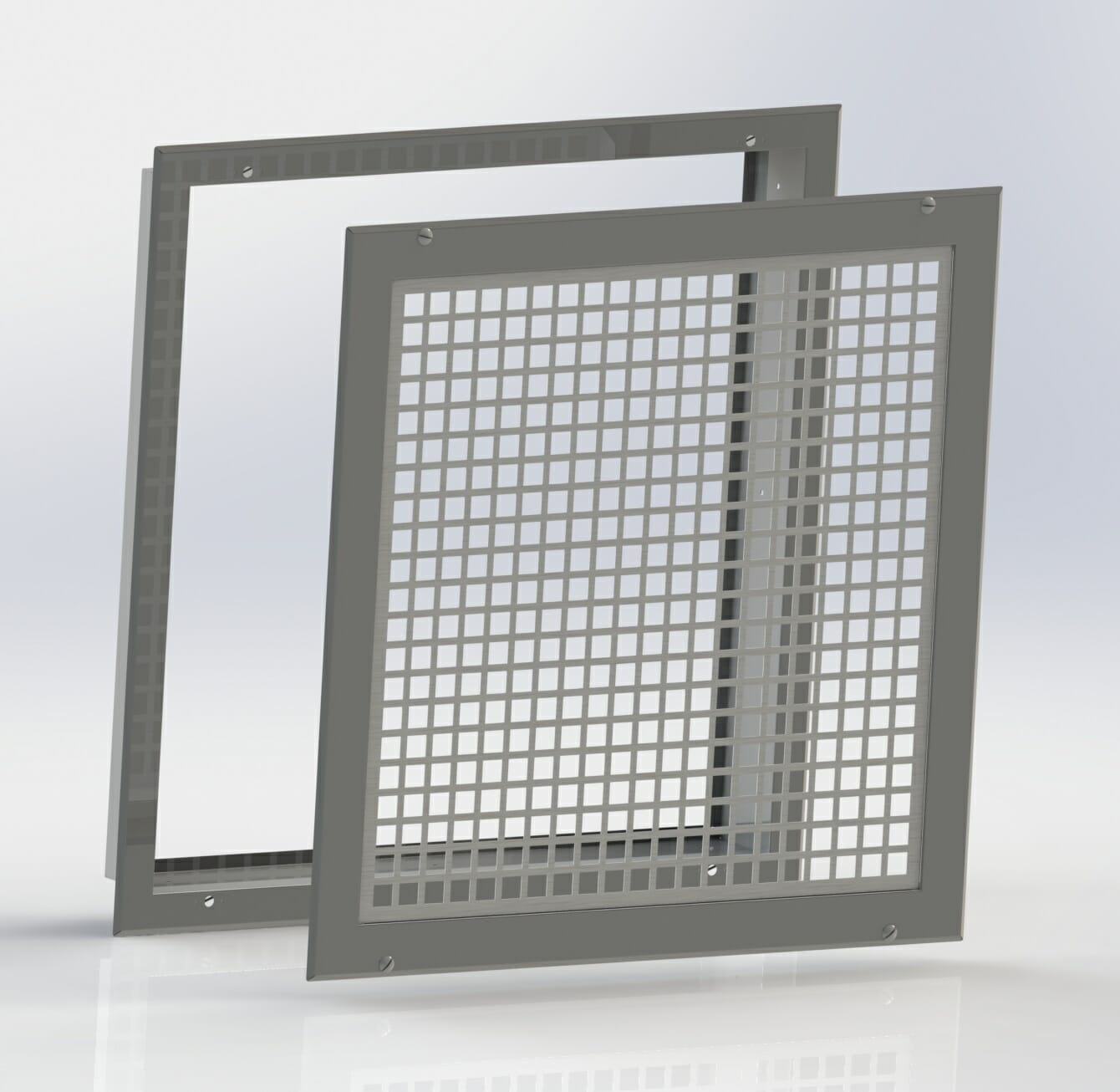

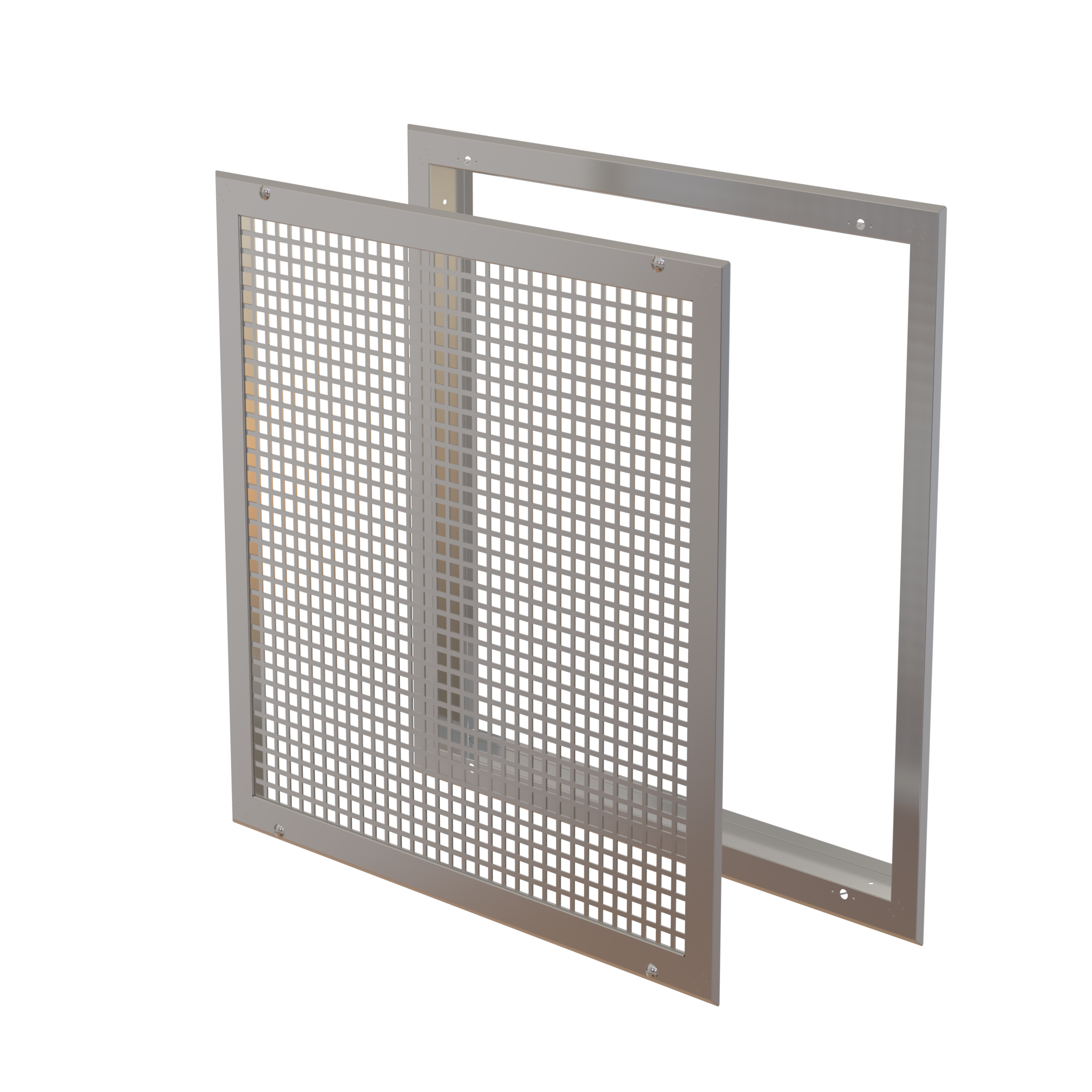

SSFG Lattice

SSFG Lattice
ssfg-ssg-removeable-filter-grille

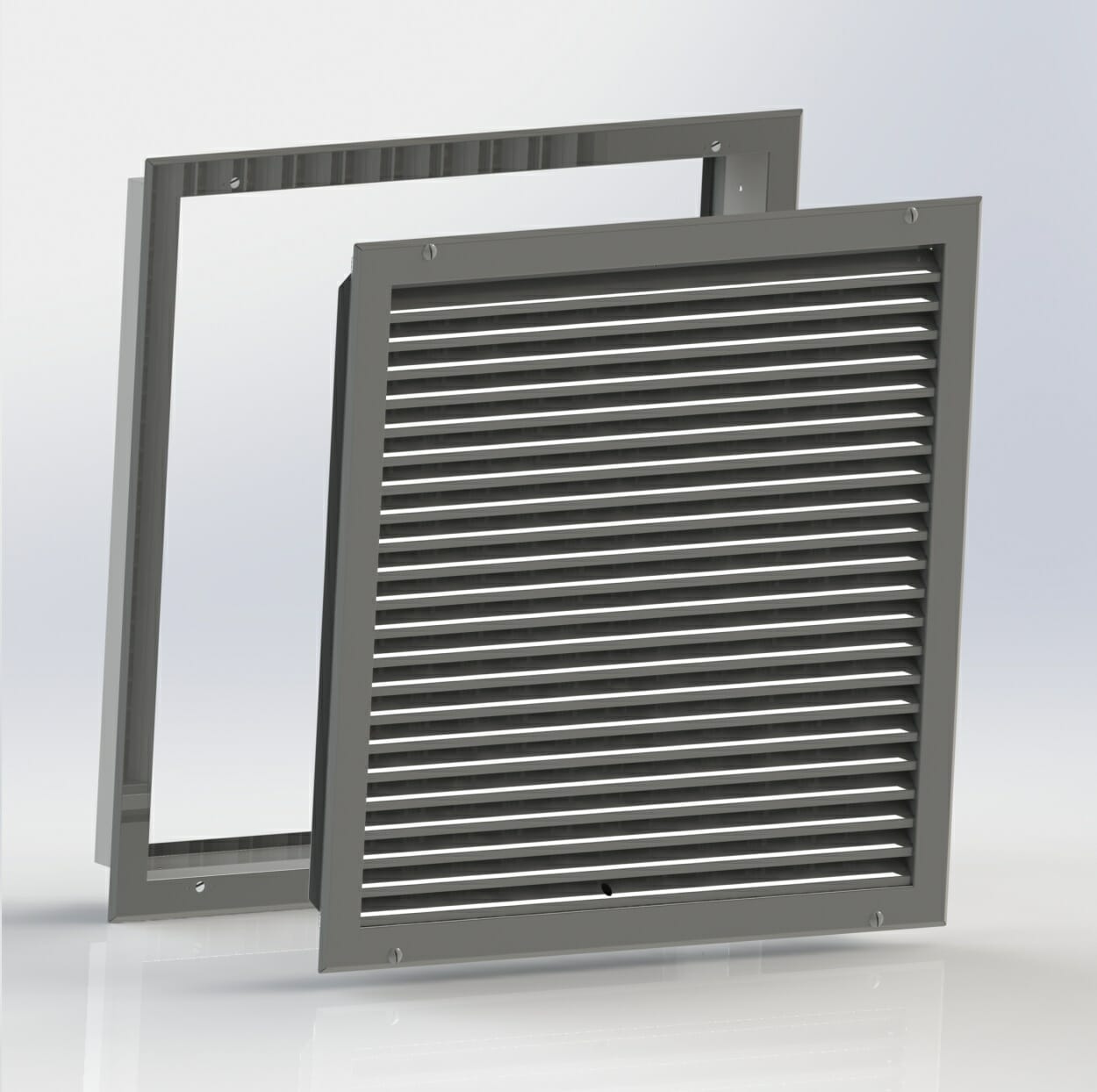

SSFG-SSG Removeable Filter Grille

The SSFG-SSG Model Removable Filter Return Grilles and Registers have adjustable horizontal blades (parallel to width/first specified dimension) spaced on ¾" (19) centers with adjustable deflection. The grille core is secured to the face of the outer frame with stainless steel ¼-turn fasteners, allowing quick removal for cleaning or changing the filters. The streamlined blades and open spacing maintain a minimum effective free area of 50%, which minimizes intake velocity, reduces inlet pressure and provides quiet operation. Deflected bar grilles installed in a low or high side wall location are vision-proof with the grille blade deflection facing away from the line of sight. Stainless steel grilles and registers are well suited for applications involving corrosive environments, high humidity or frequent cleaning with strong chemicals. Typical projects include hospitals, clean rooms, laboratories, industrial and manufacturing facilities.
